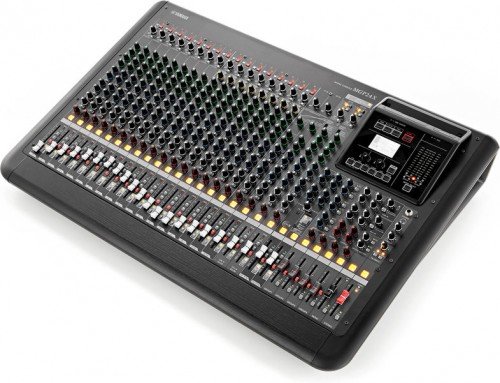

24-Channel Premium Mixing Console
Outline
Mixing capability
Mixing channels
24 Line Inputs (16 mono and 4 stereo)
GROUP
4 GROUP Buses + ST Bus
AUX
2 AUX Sends + 2 FX Sends
Input channel functions
Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving
On-board processors
FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)
I/O
Mic inputs
MIC: 10
Phantom power
48V phantom power per channel
Line inputs
LINE: 16mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo
Digital I/O
USB Audio USB IN/OUT: iPod, iPhone exclusive
General specifications
Total harmonic distortion
0.02% (20Hz-20kHz@ +14dBu)
Frequency response
+0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz
Hum & noise level
Equivalent input noise
-128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Residual output noise
-102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Crosstalk
-74dB @ 1kHz
Power requirements
100-240V 50Hz/60Hz
Power consumption
55W max
Dimensions
W
447mm
H
143mm
D
495mm
Net weight
9.0kg
Outline
Mixing capability
Mixing channels
24 Line Inputs (16 mono and 4 stereo)
GROUP
4 GROUP Buses + ST Bus
AUX
2 AUX Sends + 2 FX Sends
Input channel functions
Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving
On-board processors
FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)
I/O
Mic inputs
MIC: 10
Phantom power
48V phantom power per channel
Line inputs
LINE: 16mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo
Digital I/O
USB Audio USB IN/OUT: iPod, iPhone exclusive
General specifications
Total harmonic distortion
0.02% (20Hz-20kHz@ +14dBu)
Frequency response
+0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz
Hum & noise level
Equivalent input noise
-128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Residual output noise
-102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Crosstalk
-74dB @ 1kHz
Power requirements
100-240V 50Hz/60Hz
Power consumption
55W max
Dimensions
W
447mm
H
143mm
D
495mm
Net weight
9.0kg
